The Arch Ultimatesoftware program helps engineers analyze and design light gauge (cold formed) arch structures fabricated from K-Span, Superspan, Quickspan, Model 600 and Model 900 light gauge panels.
Key Features
- Seismic Coefficiant Calculator

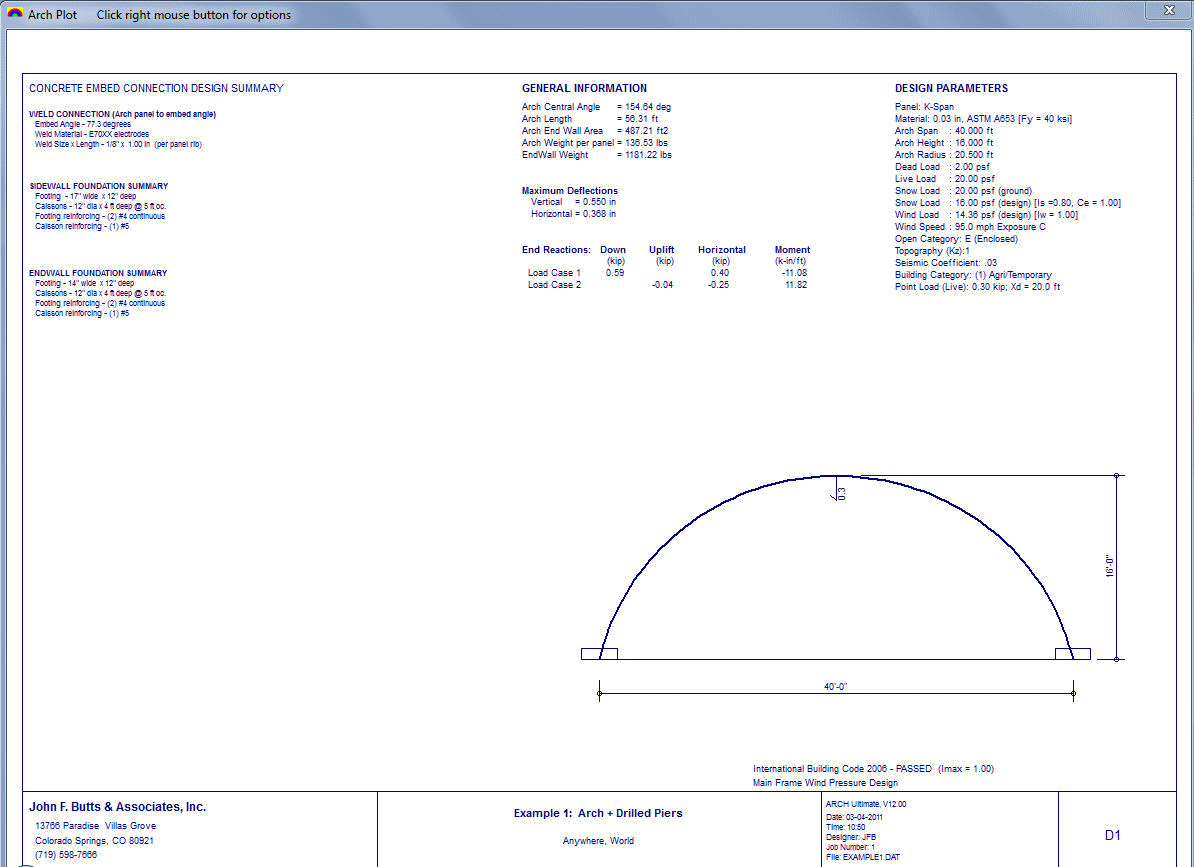

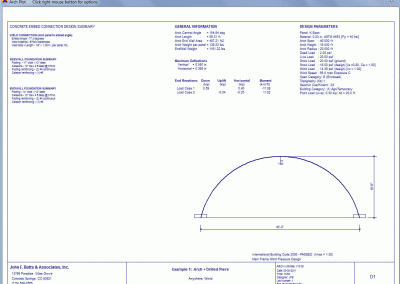

- Analyze the arch structure with a click of a button

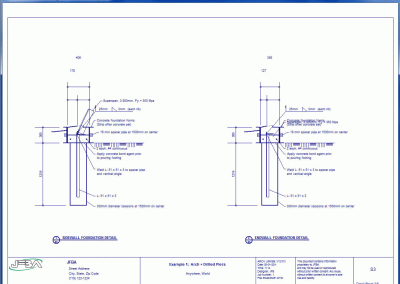

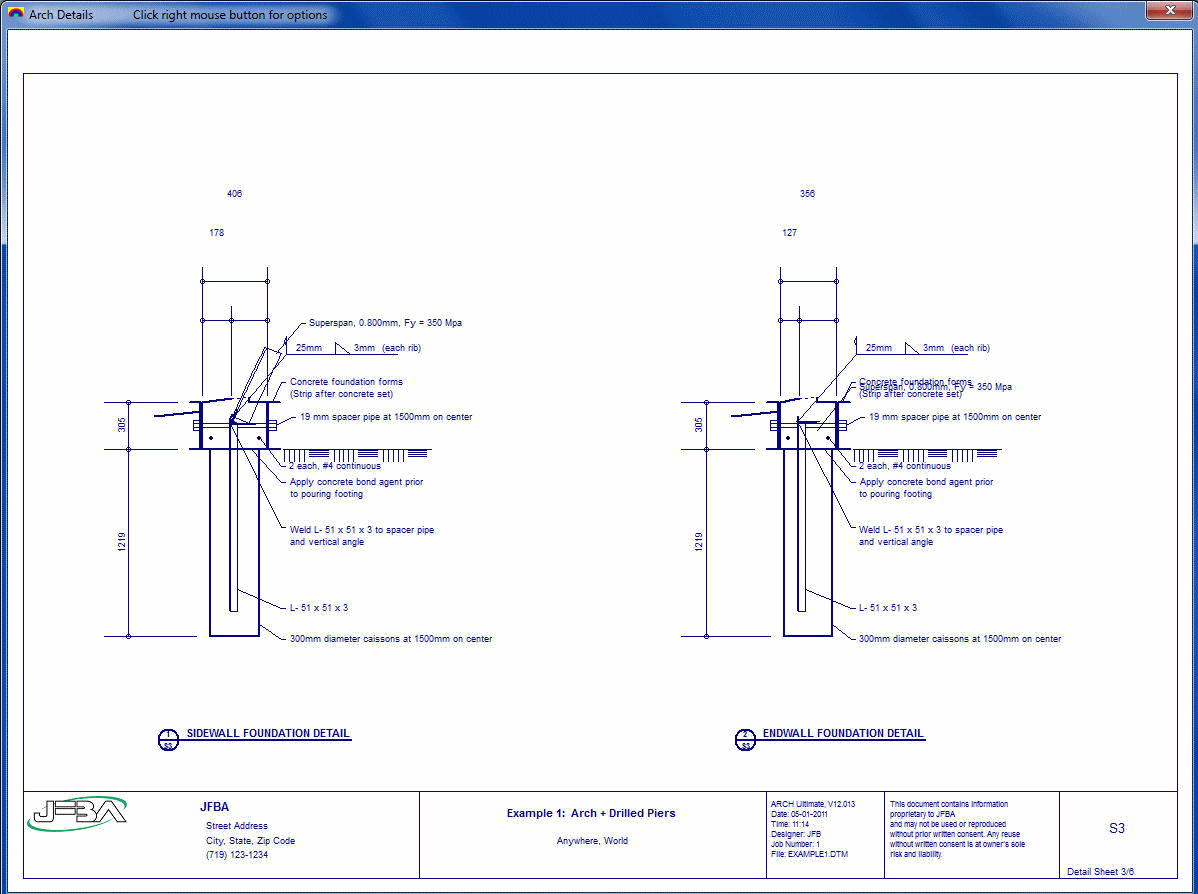

- Design the foundation footing system
- Metric and Imperial Units

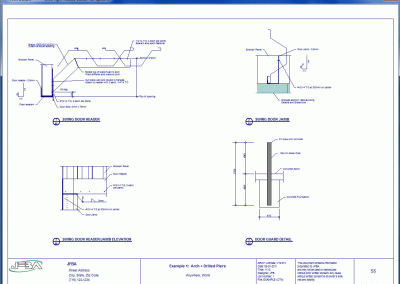

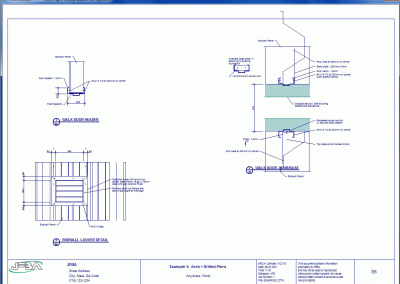

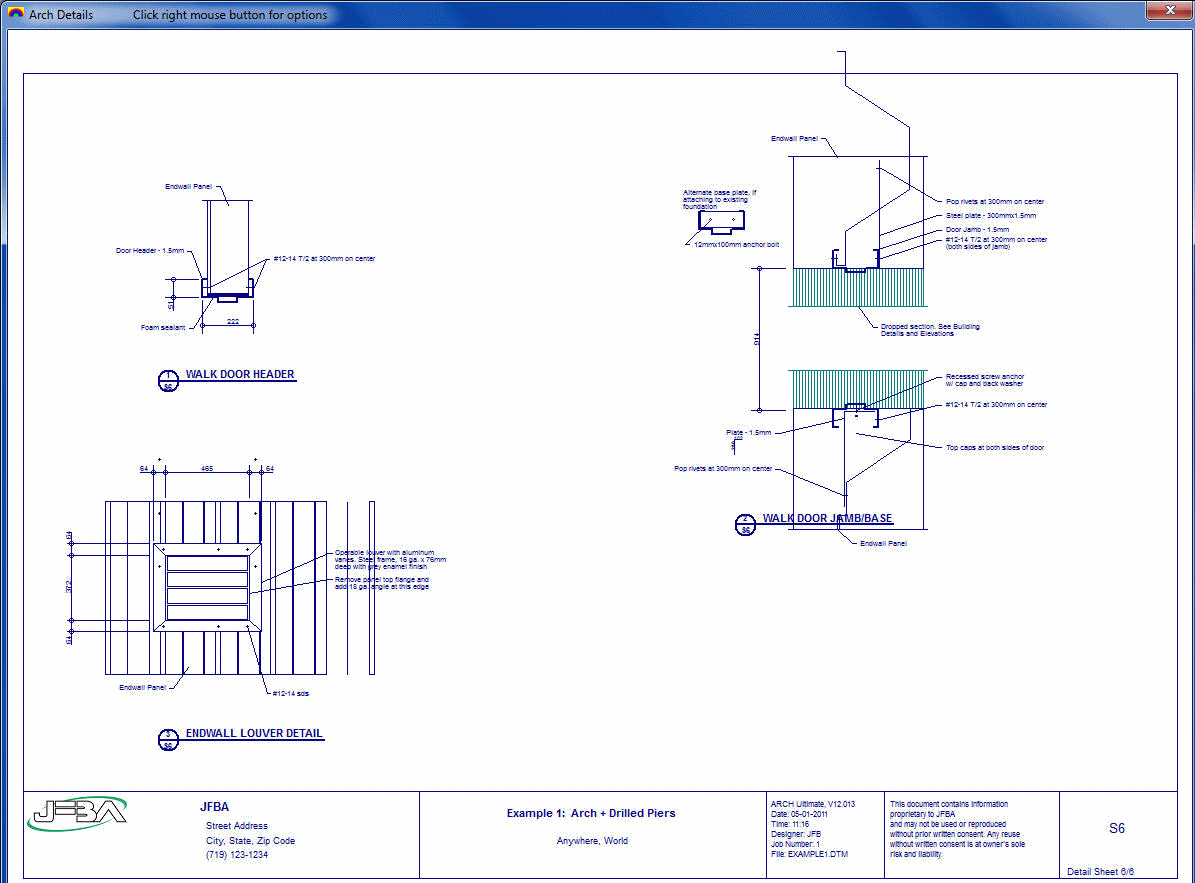

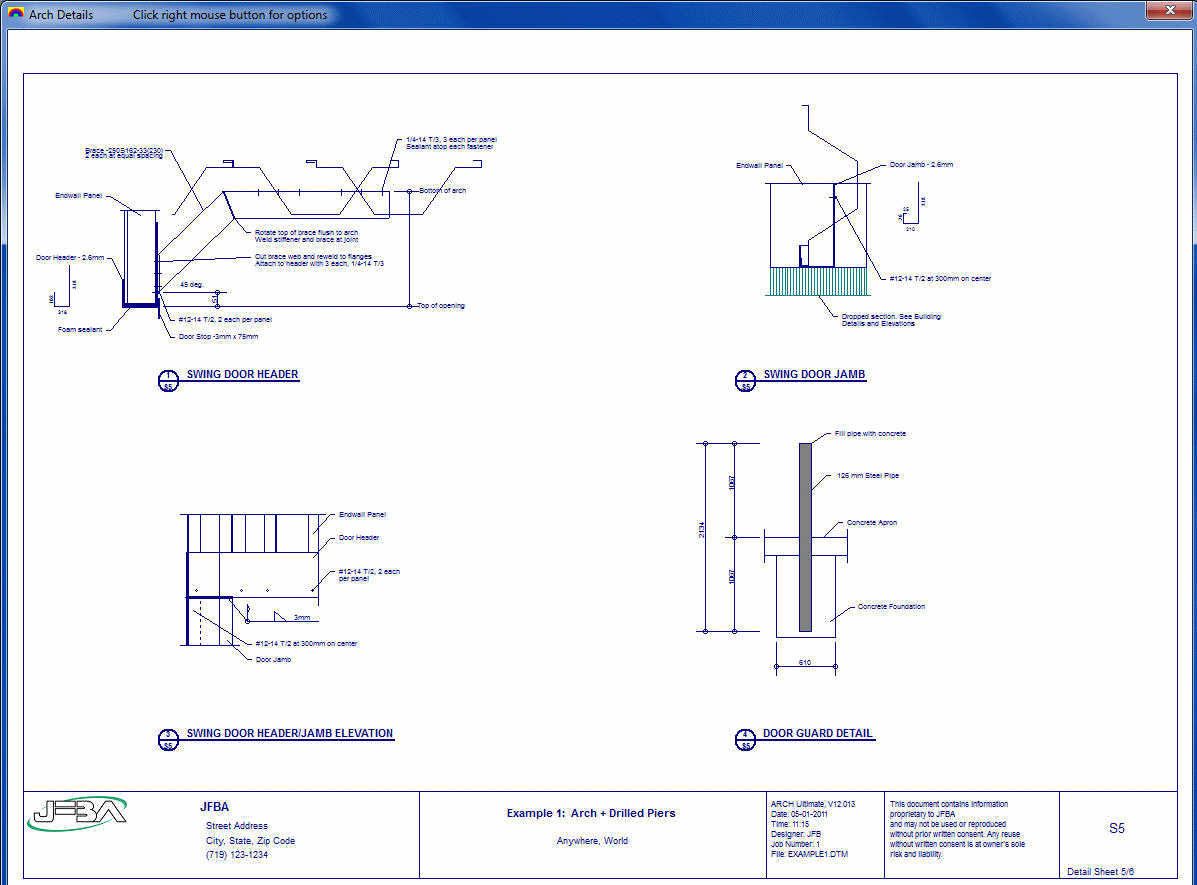

- Design the endwall door header and jamb

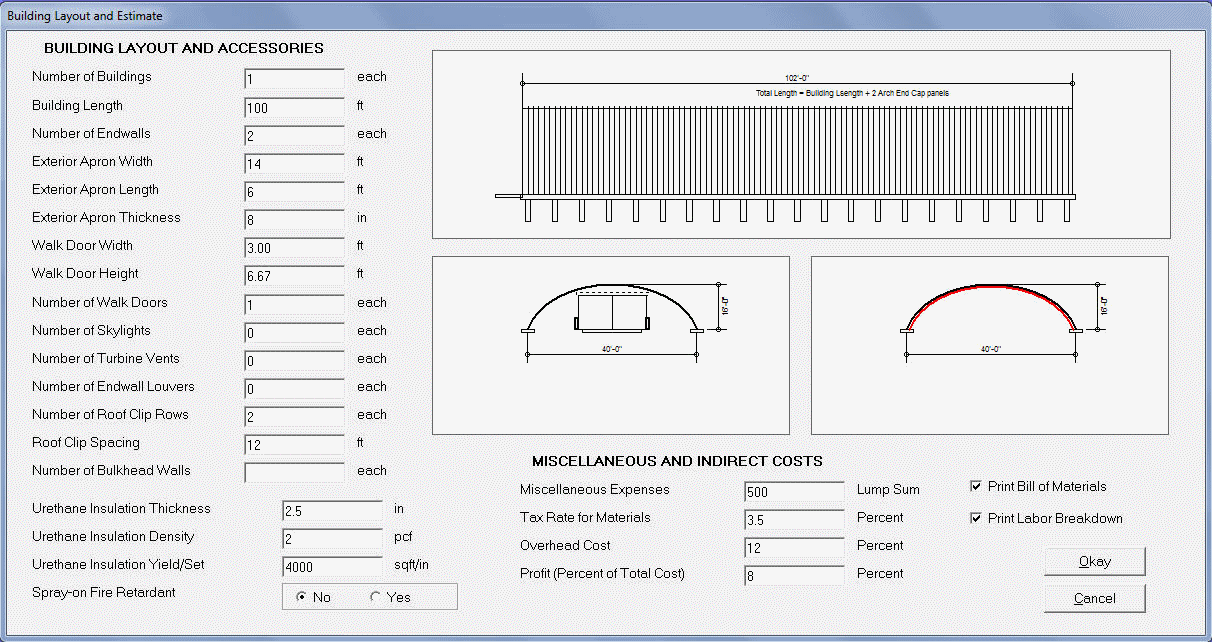

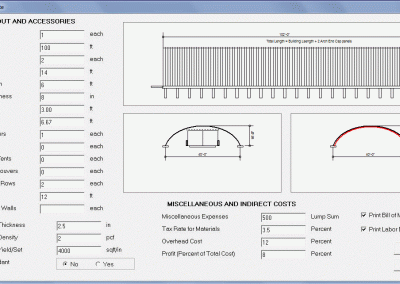

- Generate a building estimate and bill of materials
- Generate a Labor Cost and man-hours report
- Generate a Gant Construction bar chart schedule

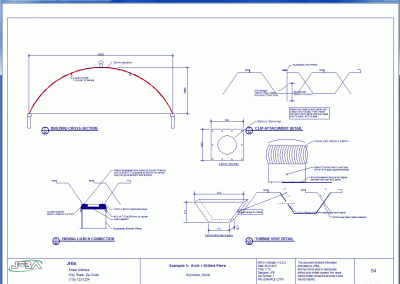

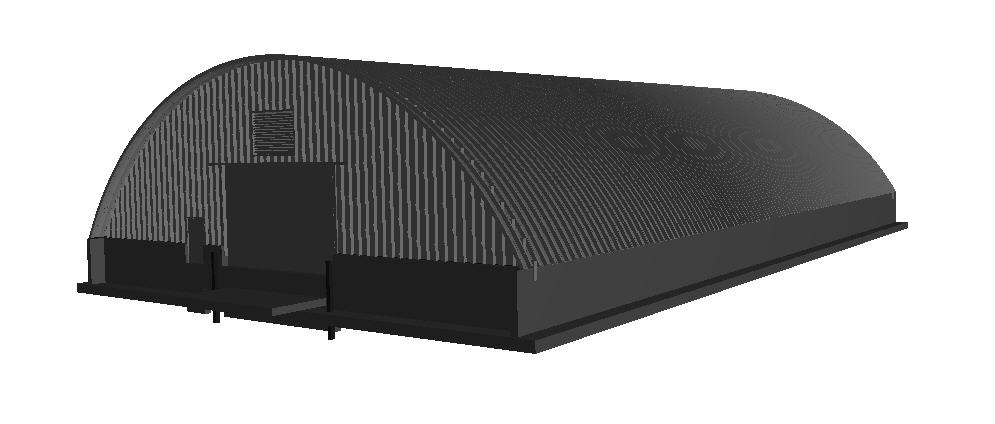

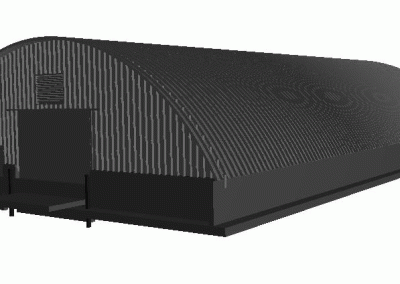

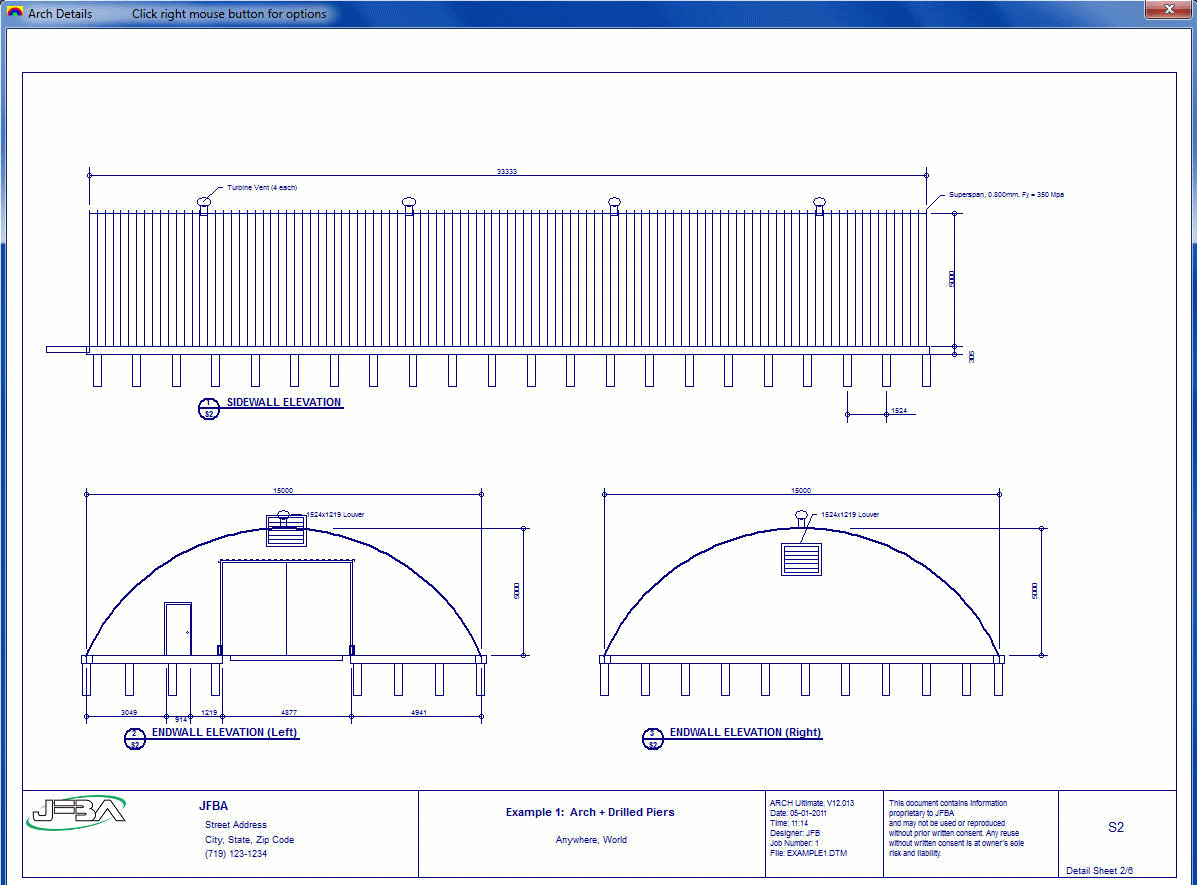

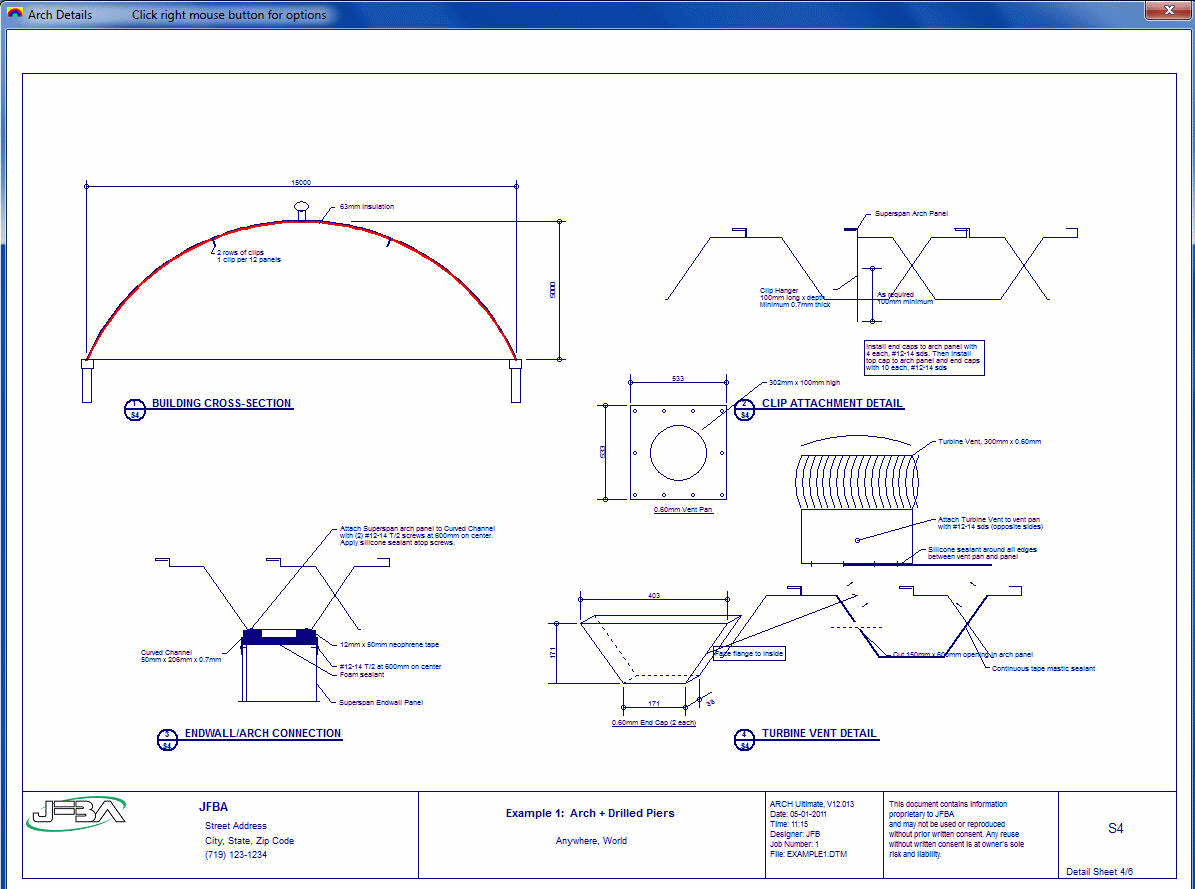

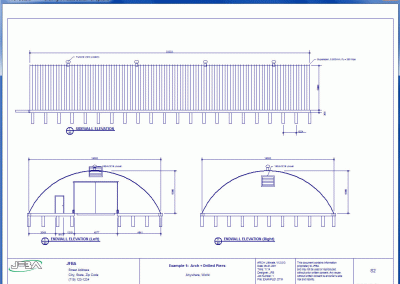

- Graphically display the Arch Structure and details
- Crop/material Storage Calculator
- Bulkhead Design
- 13 Building Codes
- Integrated with VA Batch
- Add up to 12 vertical point loads
- ASD and LRFD design
- Pinned or fixed foundation types
- Add up to 3 additional supports
- Simple input screens
- Over 70 currencies to choose from
- Easy to learn and operate
System Requirements
- Windows XP/Vista/7/8/10
- CPU: Pentium 2.0 GHz or better
- Memory: 512 MB RAM or better
- Display: SVGA, 17″
